삼성 키오스크 : CY-KM24APXKR (24인치)

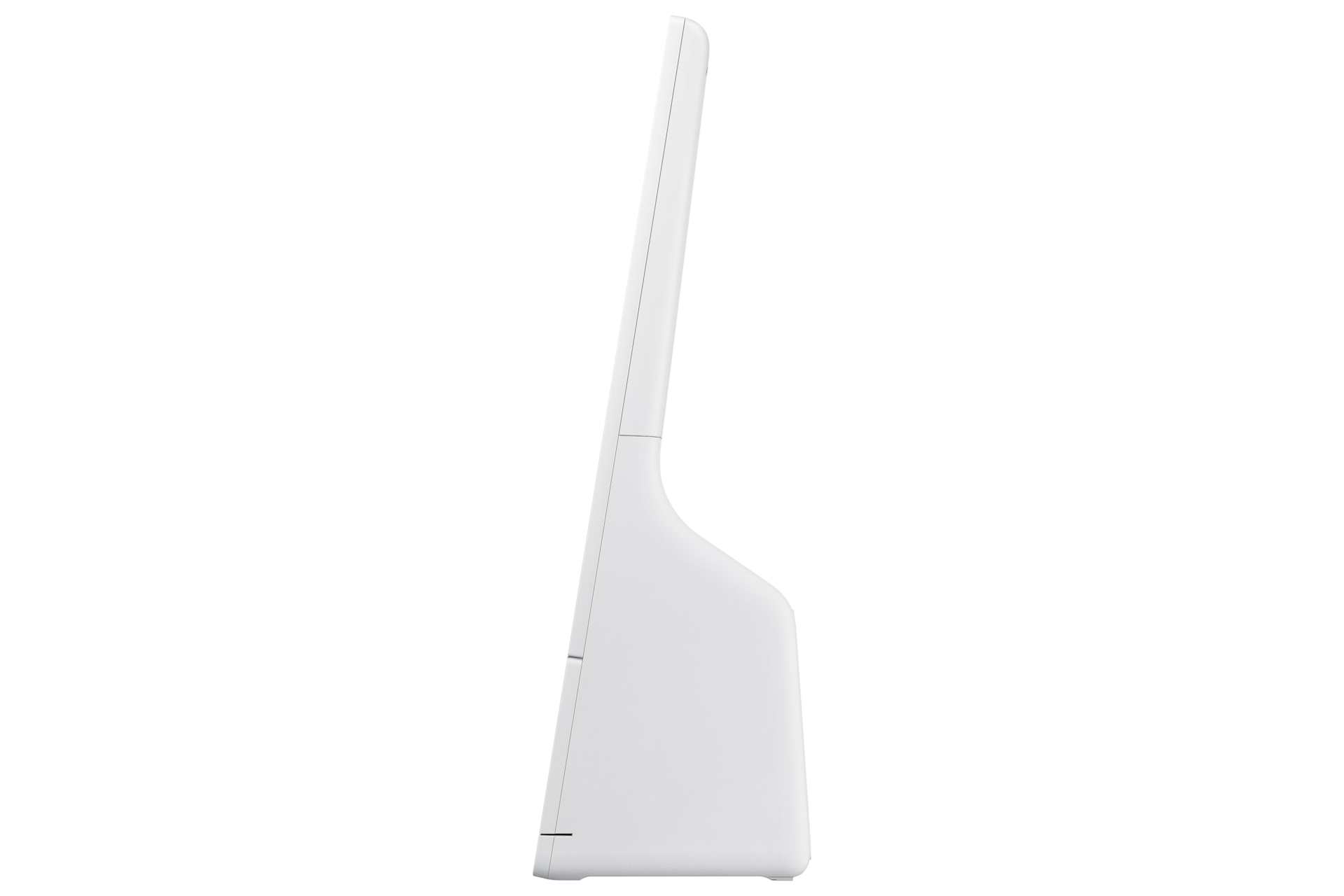

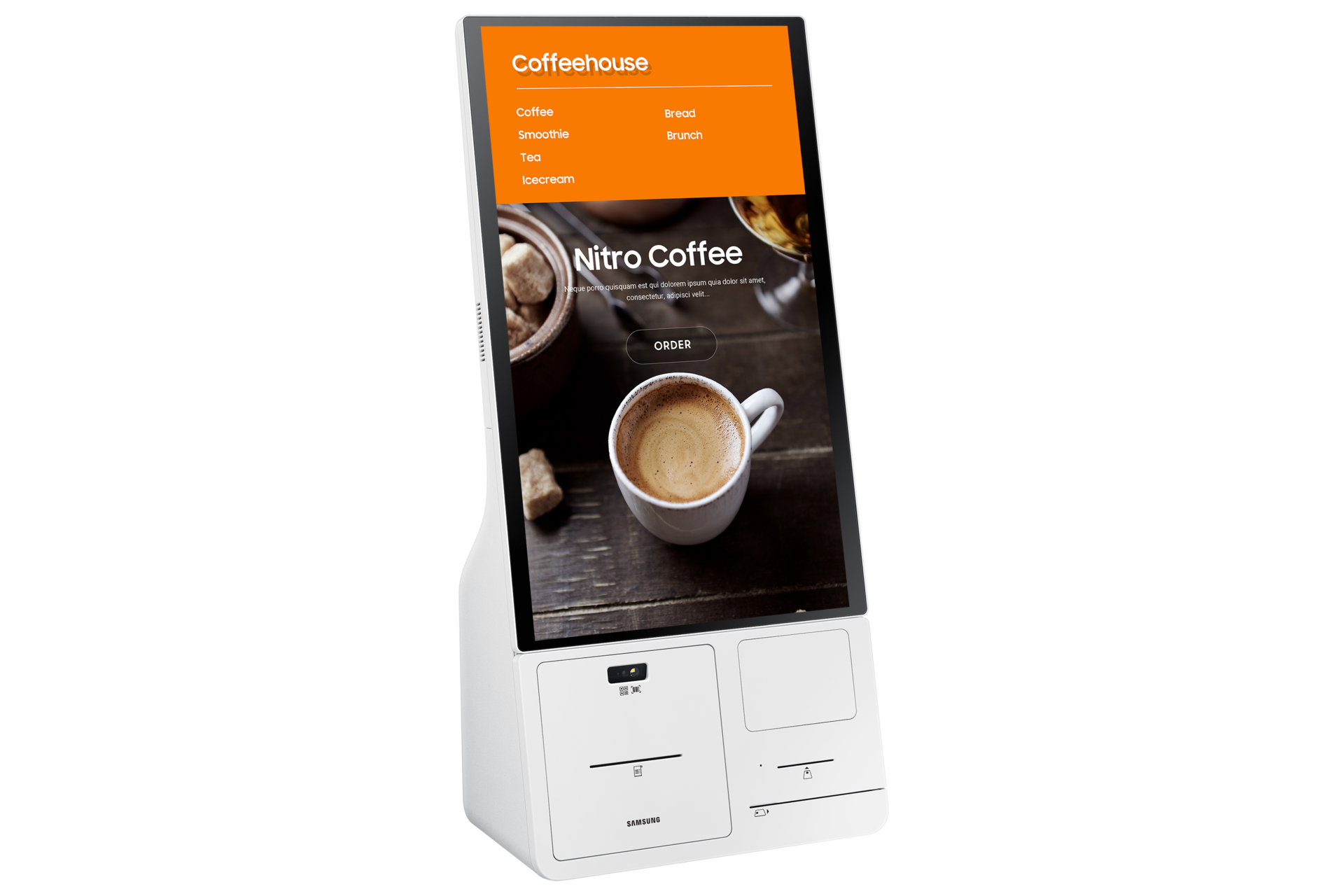

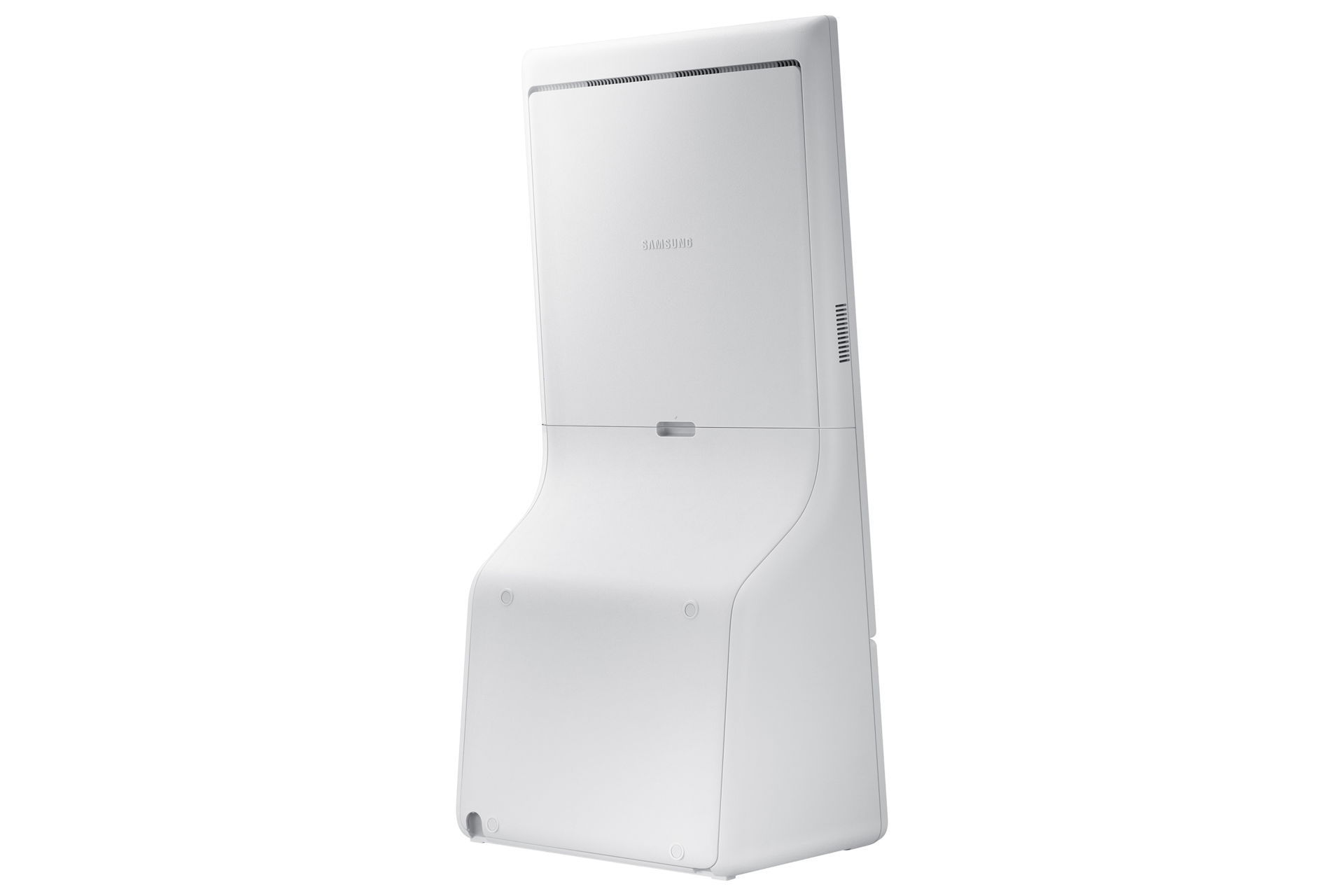

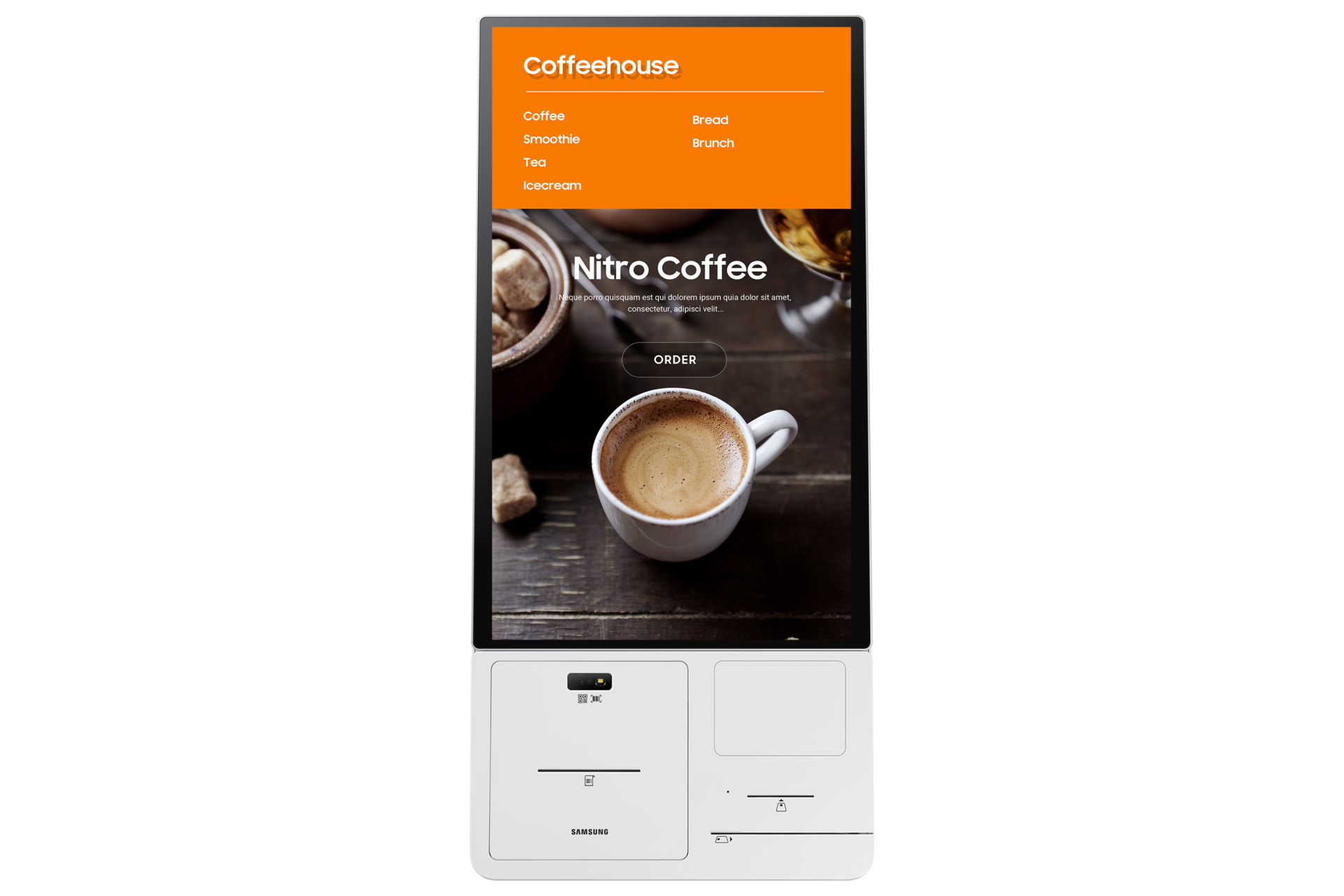

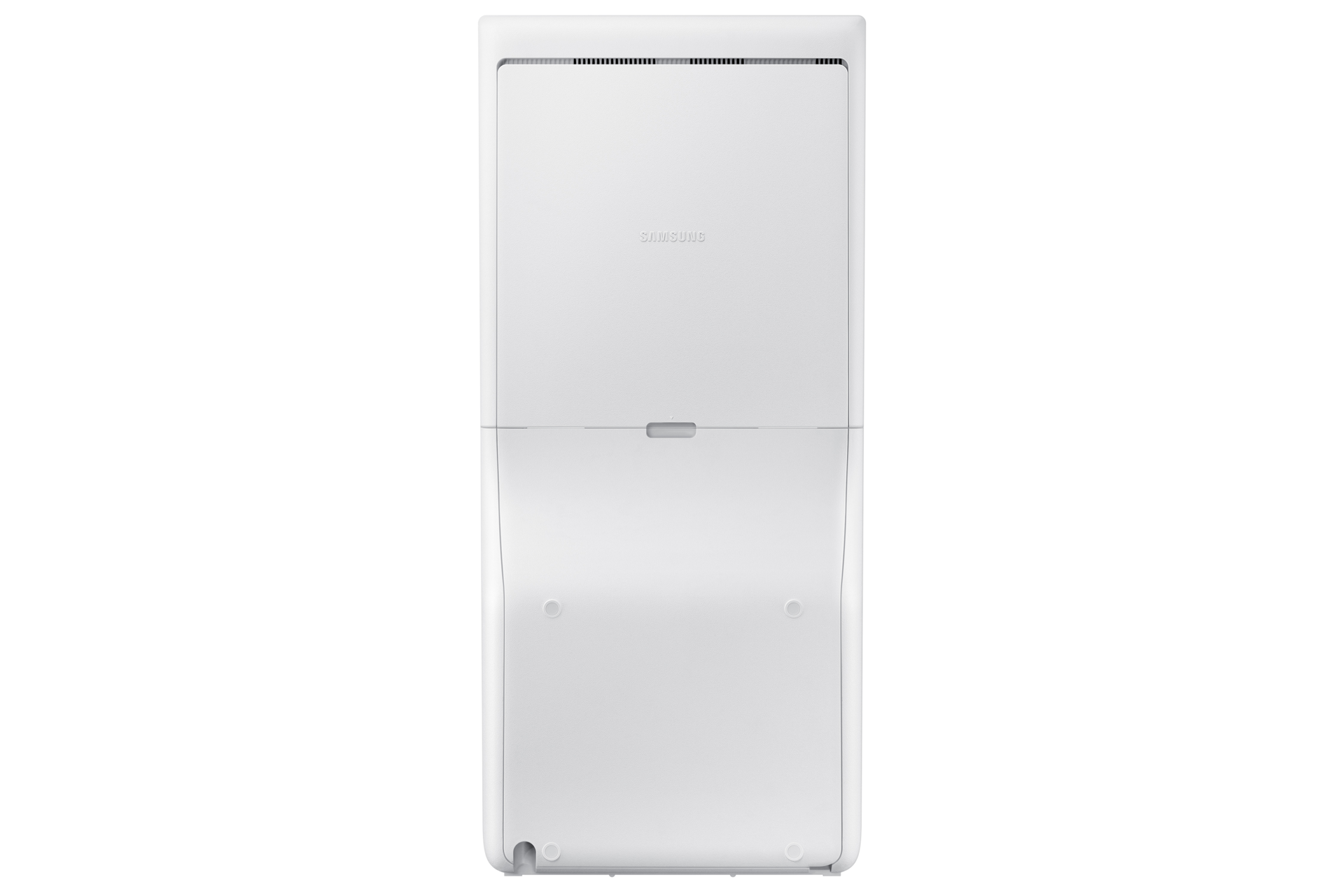

 삼성 키오스크 제품이미지 - 키오스크 커넥션 박스
 - CY-KM24AP : CY-KM24APXKR







 삼성 키오스크 커넥션 박스 CY-KM24APXKR : 전체 제품 사양
※ [KIOSK CY-KM24APXKR] RS232C x 3, RJ45 x 1, USB 3EA
- Compact and modern design
- Modular functionality to support any payment type
- Versatile solution for any scenario
삼성 키오스크 커넥션 박스 CY-KM24APXKR (CY-KM24AP)
RS232C x 3, RJ45 x 1, USB 3EA
Bi-DirectionOne Connect Port (44pin)
External ControlRS232C x 3, RJ45 x 1 (OUT, connected to EFT Terminal)
Input & OutputUSB3ea
Receipt PrinterTypeThermal
Printing Speed250 mm/sec
CuttingAutomatic (Support Full cut, Partial cut)
Paper SupportSupport 80mm paper roll, 20~83mm paper width,
0.05~0.12mm paper thickness
QR/Barcode
Reader
Supported Dimension1D, 2D
ReadabilityMobile screen and printed barcodes
Supported FormatUPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93,
Interleaved 2 of 5, GS1 DataBar, Codabar, QR
DimensionSet Dimension (WxHxD) (mm)334.4(W) x 389.6(H) x 236.5(D)
Package Dimension
(WxHxD) (mm)
428(W) x 471(H) x 316(D)
WeightSet Weight (kg)7.4 kg
Package Weight (kg)9.1 kg
Assembled SetPower SupplyAC 100~240V 50/60Hz
Power Consumption (On Mode)25W/h
Power Consumption (Sleep Mode)0.5W/h
Set Dimension334.4(W) x 733(H) x 236.5(D)
Set Weight (kg)12.5 kg
Set ColorGray White
Protection GlassYes
Power Cable Length2.4m
Operating Temperature0℃~ 40℃
Operating Humidity10~80%
Optional StandFloor Stand (Optional)
Optional MountVESA 200 x 200
 삼성 키오스크 매뉴얼 다운로드 - 키오스크 커넥션 박스
 - KM24C-C : CY-KM24APXKR 60.4cm (24인치)
 사용자 매뉴얼 [ver.2305250 한국어 4.59MB 2023-05-26]
(BN81-24436B-00_WEB_KMC-W_KR_KOR_230525.0.pdf)

 Quick Setup Guide [ver.2304280 한국어 3.48MB 2023-05-21]
(BN68-16449H-00_QSG_KMC-W_KR_KOR_230428.0.pdf)
